Home /Products/Horizontal Storage Tank/Hotels Competitive Price 30M3 15 Ton Propane Storage Tank LPG Storage Tank

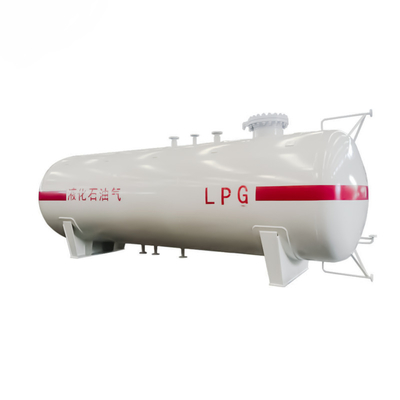

Hotels Competitive Price 30M3 15 Ton Propane Storage Tank LPG Storage Tank

1 Set
MOQ
Hotels Competitive Price 30M3 15 Ton Propane Storage Tank LPG Storage Tank
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Engine, Bearing, Pressure Vessel, Pump
Dimension(L*W*H): DN2000 X 8850 X 12/12mm
Capacity: 30000 Liter
Weight: 7860
Volume (m³): 30m3
Inner Material: Stainless Steel,Q345R
Outer Material: Carbon Steel,antiseptic Painting
Design Pressure(MPa): 1.77
Max Working Pressure(MPa): 1.6, 1.82
Design Standard: GB, GB-150 ASME
Working Temperature(℃): -20 - 50 ℃
Warranty: 1 Year
Key Selling Points: Long Service Life
Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Construction Works , Energy & Mining
Showroom Location: Egypt, Turkey, United Kingdom, United States, Germany, Pakistan, India, Russia, South Africa, Kazakhstan, Ukraine, Nigeria, Australia
LPG Tank Name: Propane Storage Tank, LPG Storage Tank
Medium: LPG
Volume: 5m3-200m3
Color: Customed Color
LPG Tank Materials: Q345R Carbon Steel
Customized Support: OEM
Key Words: Lpg Storage Tank ,LPG Tank, Lpg Gas Tank
After-sales Service Provided: Online Support,Video Technical Support
Basic Infomation
Payment & Shipping Terms
Packaging Details: LPG Tank Packing: Nude Packing; one set 5m3 LPG Tank load in one 20GP ; one set 10m3 (DN1600) lpg storage tank price load in one 20GP; one set 15m3 lpg storage tank load in one 40HQ; one set 20m3 capacity lpg storage tank price load in one 40HQ; one set 30
Supply Ability: 100 Set/Sets per Month liquid oxygen tank, liquid oxygen tank
Product Description
Product Overview

LPG Storage Tank

The LPG Tank is liquefied petroleum gas which is used for filling and storing liquefied petroleum gas (LPG) with saturated vapor pressure lower than 1.77 Mpa at 50℃. But our company according to "Safety Technology Supervision of Stationary Pressure Vessels" to determine the maximum allowable working pressure 1.82MPa, all products in accordance with 1.82MPa pressure to conduct strength calculation than any other company 1.77MPa pressure calculation. We support LPG Tank from 5M3 to 200M3, the color and LOGO can be customize by customers.
Stand-alone LPG storage units with pumping equipment and dispenser incorporated in a frame. Includes transfer equipment to allow the supply of gas in liquid phase to vehicles with the maximum guarantee of safety. Simplified installation: only requires connection of power supply to the unit and anchoring to the ground (with earth connection).
We are a professional manufacturer, we have our own workshop and technical personnel, We can produce all kinds of size of the LPG storage tank. We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirement of customers.
Products Description
LPG gas tank
1.lpg storage tank capacity:
5,000l , 10,000l, 15,000l, 20,000l, 25,000l, 30,000l, 35,000l, 50,000l, 80,000l, 100,000l . 120,000l, 150,000l, 180,000l,
200,000l.
2.5tons, 5tons, 10tons, 15tons, 20tons, 25tons, 30tons, 35tons, 40tons, 45tons, 50tons, 55tons, 60tons.

2. lpg storage tank material:
Q345R Q370R Q420R SA516

3.lpg storage tank production flow:
cuttings-bending plate-submerged arc welding-assembly-non destructive testing-heat treatment- hydraulic test- sand
blasting-painting
Item
Usable Volume(m3)
Working/Design Pressure(Mpa)
Medium
Weight
Device Size (L*W*H)
CFL-10/0.8
10
0.8/0.84








LPG
5125
2312*5987
CWL-10/0.8
10
0.8/0.84
LNG
5125
2312*2792*5364
CFL-30/0.8
30
0.8/0.84
LNG
10809
2512*11583
CWL-30/0.8
30
0.8/0.84
LNG
11358
2807*2512*11099
CFL-50/0.8
50
0.8/0.84
LNG
17680
3016*3088*12120
CWL-50/0.8
50
0.8/0.84
LNG
18145
3477*3216*10560
CFL-100/0.8
100
0.8/0.84
LNG
34437
3554*3587*16435
CWL-100/0.8
100
0.8/0.84
LNG
34549
4185*3924*12816
CFL-150/0.8
150
0.8/0.84
LNG
47225
3754*3787*20991
CWL-150/0.8
150
0.8/0.84
LNG
47940
4185*3924*18316
CFL-200/0.8
200
0.8/0.84
LNG
64214
4087*4054*23047
Details Images
Pump with electrical engine in Ex Protection and delivery pump
The basic equipment includes manhole, joint for safety valve, exit for air discharge, joint for liquid indicator, liquid inlet, gas phase equilibrium mouth, liquid phase outlet, liquid discharge, etc.
Complete mobile filling station for LPG is mounted on stable steel base with carrying handles.
For the safe usage of the LPG products, we process several test for the LPG tanks such as welding line density test, thermal treatment, hydra press measurement, ray nondestructive test, etc,can filling gas to LPG Cylinder, LPG Storage Tanker for Home and Car, Taxi Bus.
Outside door LPG Filling Gas Mobile Stations
The optional equipment includes liquid indicator, safety valve, temperature gauge, pressure meter, etc.
Mobile LPG filling station For LPG tank-Equiped With all accessories, Stop and Safety Fittings.
Product process flow
Workers welding
Clean after passing the test
Sleeve inner container and outer container
Pipeline assembly
External surface painting
Inspection qualified loading and delivery
Company Profile
DOER EQUIPMENT
Nanyang Doer Gas Equipment Co., Ltd. is mainly engaged in the research, design,manufacture and after-sales service of various industrial gas equipment and cryogenic equipment.
The company has:
1. Cryogenic equipment division: large atmospheric cryogenic storage tank, powder vacuum cryogenic storage tank, large air-bath vaporizer, water-bath vaporizer, cryogenic loading pump and loading arm system for large cryogenic storage tank, metering skid Wait.
2. Gas equipment business unit: LNG refueling station, L-CNG refueling station, LNG vaporization station, LNG vaporizer, LNG vaporization pressure regulating metering and odorizing skid, LPG vaporizer.
3. Heat Exchanger Business Unit: high-pressure wound tube heat exchanger, fixed tube plate heat exchanger, U-tube heat exchanger, floating head heat exchanger.
Our Services & Strength
In the past few years, the industrial gas equipment produced by the company has been widely used in coke oven gas LNG, iron and steel metallurgical industry, air separation industry, urban gas industry, due to its advanced technology, excellent quality, reasonable price and super-value after-sales service. Heat treatment industry, coal-fired oil-fired boiler transformation industry, as well as powder metallurgy, hot-dip galvanizing industry, petrochemical industry, chemical fiber, float glass, food preservation, medicine, electronics, automobile LNG refueling station, marine LNG transformation, gas terminal reserve adjustment Peak stations, laboratories of scientific research units in national defense and aerospace universities.
CERTIFICATION
Package&Deliver
FAQ
1. who are we? We are based in Henan, China, start from 2013,sell to Domestic Market(25.00%),Southeast Asia(20.00%),Africa(10.00%),Mid East(10.00%),South Asia(10.00%),North America(5.00%),South America(5.00%),Eastern Europe(5.00%),Eastern Asia(5.00%),Western Europe(5.00%). There are total about 201-300 people in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Cryogenic Liquid Storage Tanks,Air separation plant,LNG/L-CNG Filling Station,PSA/VPSA Oxygen Nitrogen Generator Plants,Micro Bulk Cryogenic Liquid Tanks 4. why should you buy from us not from other suppliers? Doer is a leading industrial gas and engineering company.The company serves a variety of end markets including chemicals & energy, food & beverage, electronics, healthcare, manufacturing, metals and mining.Cryogenic tanks of Doer help your business succeed 5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency:USD,CNY; Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union; Language Spoken:English,Chinese,German,Russian
