30 CBM Vertical Pressure Vessel Vacuum Powder Insulated LCO2 Storage Tank
Brief Introduction of Cryogenic Storage Tank of LNG/LO2/LN2/LAR/LCO2

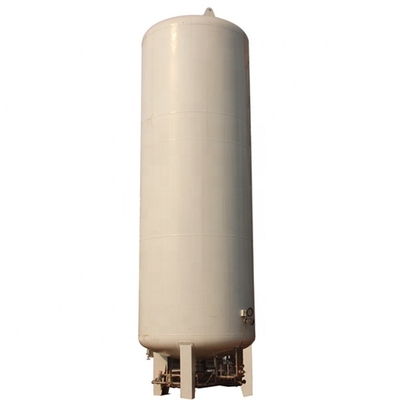

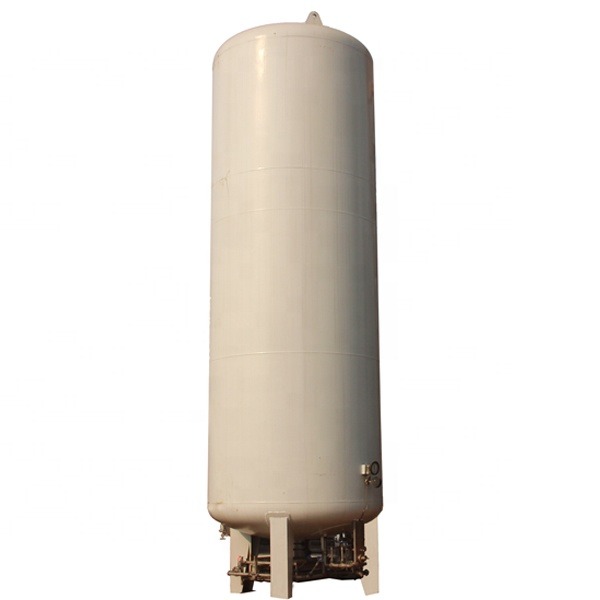

30 CBM Vertical Pressure Vessel Vacuum Powder Insulated LCO2 Storage Tank
This pressure vessel is a fixed vacuum powder insulated cryogenic tank with double-layer cylindrical structure. The inner container is used to store low temperature liquid gas. The shell forms and protects the vacuum insulation space. The sandwich is filled with pearlite sand and pumped into a vacuum state to form a good adiabatic system. The design of the shell and support system can withstand the relevant external forces produced during manufacture, transportation, installation and use. The bottom of the cryogenic tank is provided with a complete set of valves, meters and safety devices for operation.
Design Code :
1)GB150.1~150.4-2011 Pressure vessels
2)GB/T 18442.1-18442.6 Stationary vacuum insulated cryogenic pressure vessels
3)ASME Available
|
LCO2 Tank Specification 30 CBM Vertical Pressure Vessel Vacuum Powder Insulated LCO2 Storage Tank |
||||
|
NO. |
Model |
Outline Size |
Net Weight(KG) |
Type |
|
1 |
CFL-5/2.16 |
Φ1916*5262 |
4800 |
Vertical
|
|
2 |
CFL-10/2.16 |
Φ2316*5900 |
7000 |
|
|
3 |
CFL-15/2.16 |
Φ2416*7202 |
9600 |
|
|
4 |
CFL-20/2.16 |
Φ2616*7629 |
12000 |
|
|
5 |
CFL-30/2.16 |
Φ2916*8546 |
16700 |
|
|
6 |
CFL-40/2.16 |
Φ3016 *10180 |
21200 |
|
|
6 |
CFL-50/2.16 |
Φ3016*12150 |
25200 |
|
|
7 |
CFL-60/2.16 |
Φ3016*14550 |
29200 |
|
|
8 |
CFL-800/2.16 |
Φ3520*13419 |
41900 |
|
|
9 |
CFL-100/2.16 |
Φ3520*16169 |
49700 |
|
|
10 |
CFL-150/2.16 |
Φ3724*8580 |
16020 |
|
|
11 |
CFL-150/01.2 |
Φ3020*21090 |
72400 |
|
Our main products as below:
1)WNS/SZS Oil Gas Fired Steam Boiler/Hot Water Boiler;
2)DZH/DZL/SZL Model Biomass Pellet Wood/Coal Fired Steam Boiler / Hot Water Boiler;
3)YY(Q)W Series Natural Gas or Diesel Oil or Heavy Oil Fired Thermal Oil Boiler;
4)YGL/YGW/YLW Type Solid Fuel Wood Pellet Biomass Fired Thermal Oil Heater Boiler;
5)Waste Heat Recovery Boiler;
6) Stationary LPG Storage Tank (5000L to 200,000L)
7) Cryogenic Storage Tank (LNG Tank, Liquid Oxygen/Nitrogen/Argon/LCO2 Tank)
8) Mobile Skid Mounted LPG Filling Station (5000L to 60,000L)
9) Integrated design, manufacturing, and installation services
Shandong Zhongjie Pressure Equipment Co., Ltd (Formerly Heze Boiler Factory Co., Ltd) was founded in 1984. After more than 30 years of development, the company has become a professional equipment manufacturer with four major product segments: pressure vessel, industrial boiler, central air conditioner and engineering installation with integrated R&D, design, production, installation, commissioning and technical services. Our factory is located in the High-tech Development Zone of Heze City, Shandong Province. It has a research and development design center and three production bases. It covers an area of 200,000 square meters and has more than 750 employees, of which engineering and technical personnel account for more than 20%. Our company's leading products are: industrial and civil biomass boilers, fuel gas boilers, organic heat carrier boilers, waste heat recovery boilers, refrigeration auxiliary machines and first, second and third types of pressure vessels, heat exchangers, ground source heat pump units,etc.
1. Q: Are you a factory or trading company?
A: We are a leading manufacturer of pressure vessels,including lpg storage tank, LNG storage tank, cryogenic vacuum insulated storage tank, liquid CO2 storage tank,liquid ammonia tank, skid mounted lpg filling stations,and spare parts with more than 30 years experiences. We are the largest production base of lpg storage tank in China now, sincerely welcome to visit our factory.
2. Q: Could you customize exactly according to my requirements ?
A: Yes. OEM is available for liquid CO2 storage tank manufacturer. We have professional R&D team, we can produce the product exactly according to your requirements.
3. Q:What service can I get from you?
A: We can offer complete solutions integrated with design, manufacturing, installation, inspection and maintenance at competitive prices. And We provide lifelong tracking service and one year free warranty for all of our products. we also provide training and technical support to guide you install and commission your product.
4. Q: What is the MOQ ?
A: One piece is acceptable, the more the quantity, the more favorable the price.
5. Q: How to transport products?
A:The products can be transported by sea, railway,and motor vehicles, according to users’ demands.
6. Q: How about the delivery time?
A: Our normal production time of liquid CO2 storage tank about 45days after receiving deposit.
7. Q: What should i do for the quality problems?
A:If you meet quality problems please send to me the products photo first ,our after service department will deal with for you in time.
